NTN69/1.5A/W69/1.5ASA/SSA/FL69/1.5A/FLW69/1.5ASA/SSA轴承
- 轴承型号：69/1.5A/W69/1.5ASA/SSA/FL69/1.5A/FLW69/1.5ASA/SSA
- 系列：微型非标深沟球轴承1
- 品牌：NTN
NTN 69/1.5A/W69/1.5ASA/SSA/FL69/1.5A/FLW69/1.5ASA/SSA轴承,微型非标深沟球轴承1，轴承内圈,外圈更多详细资料您可致电我司，此轴承型号本公司有现货，获取NTN 69/1.5A/W69/1.5ASA/SSA/FL69/1.5A/FLW69/1.5ASA/SSA游隙尺寸,游隙尺寸表,滚子粒数,69/1.5A/W69/1.5ASA/SSA/FL69/1.5A/FLW69/1.5ASA/SSA报价,价格,外形尺寸,锥度,轴承的图纸、样品、价格或者替换产品等！我们是NTN轴承最佳代理商，所售产品均为原装正品，请您放心购买！ 订购电话：021-36539288 ,021-36539299
NTN69/1.5A/W69/1.5ASA/SSA/FL69/1.5A/FLW69/1.5ASA/SSA轴承参数
-
系列微型非标深沟球轴承1
-
型号69/1.5A/W69/1.5ASA/SSA/FL69/1.5A/FLW69/1.5ASA/SSA
-
Boundarydimensions
mm- d
- D
- B
- B1
- D1
- D2
- C1
- C2
- rsmin1
- 1.5
- 5
- 2
- 2.6
- 6.5
- 6.5
- 0.6
- 0.8
- 0.15
-
Basic load ratings
- dynamic
- static
- dynamic
- static
- kN
- kgf
- Cr
- Cor
- Cr
- Cor
- 171
- 51.0
- 17.0
- 5.00
-
Limiting speeds
- rpm
- grease
- oil
- 79,000
- 93,000
-
Bearing numbers
- open
- with single shield
- with double shield
- with flanged outer ring
- with flanged OR and single shield
- 69/1.5A
- W69/1.5ASA
- SSA
- FL69/1.5A
- FLW69/1.5ASA
-
Abutment and fillet dimensions
- mm
- da
- Da
- ras
- min
- max2
- max
- max
- SSA
- 2.7
- 2.9
- 3.8
-
Mass (approx.)
(g)- open
- with flanged outer ring
- 0.15
- 0.18

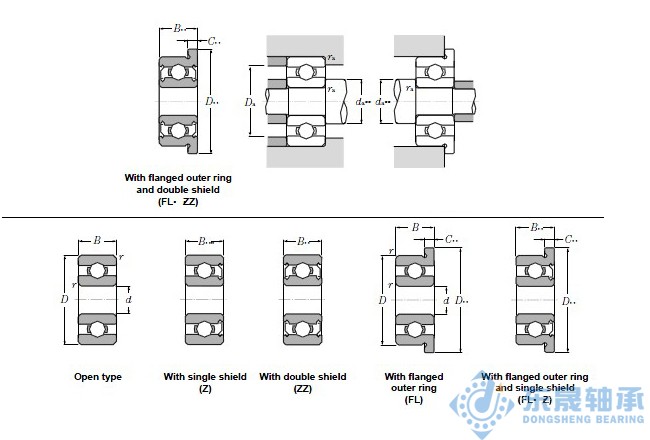

- 微型非标深沟球轴承1系列 69/1.5A/W69/1.5ASA/SSA/FL69/1.5A/FLW69/1.5ASA/SSA图片
