IKORNA49/22UU/RNA49/22U轴承
- 轴承型号：RNA49/22UU/RNA49/22U
- 系列：滚针轴承8
- 品牌：IKO
IKO RNA49/22UU/RNA49/22U轴承,滚针轴承8，轴承内圈,外圈更多详细资料您可致电我司，此轴承型号本公司有现货，获取IKO RNA49/22UU/RNA49/22U代号,基本尺寸,安装尺寸,基本额定载荷,精度等级,装配,轴承的图纸、样品、价格或者替换产品等！我们是IKO轴承最佳代理商，所售产品均为原装正品，请您放心购买！ 订购电话：021-36539288 ,021-36539299
IKORNA49/22UU/RNA49/22U轴承参数
-
系列滚针轴承8
-
型号RNA49/22UU/RNA49/22U
-
Boundary dimensions mm
- Fw
- D
- C
- r smin(1)
- 28
- 39
- 17
- 0.3
-
Identification number
- With two seals
- With one seal
- With two seals
- With one seal
- RNA 49/22UU
- RNA 49/22U
- ─
- ─
-
Mass (Ref. )g55.5
-
Standard mounting dimensions
- Da
- Max.mm
- 37
-
Basic dynamic load rating
- C
- N
- 18 300
-
Basic static load rating
- C0
- N
- 23 700
-
Allowable rotational
- speed(2)
- rpm
- 7 000

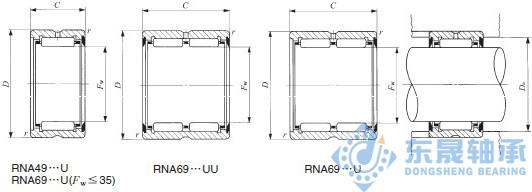

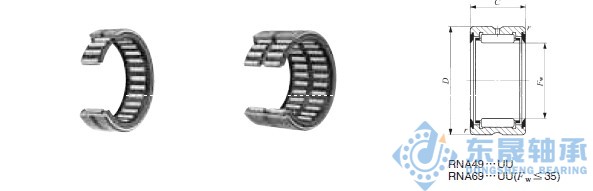

- 滚针轴承8系列 RNA49/22UU/RNA49/22U图片
