IKONA4926UU/NA4926U/LRTZ13015051轴承
- 轴承型号：NA4926UU/NA4926U/LRTZ13015051
- 系列：滚针轴承9
- 品牌：IKO
IKO NA4926UU/NA4926U/LRTZ13015051轴承,滚针轴承9，轴承内圈,外圈更多详细资料您可致电我司，此轴承型号本公司有现货，获取IKO NA4926UU/NA4926U/LRTZ13015051配合安装尺寸,基本尺寸,滚子粒数,NA4926UU/NA4926U/LRTZ13015051价格,外形尺寸,锥度,轴承的图纸、样品、价格或者替换产品等！我们是IKO轴承最佳代理商，所售产品均为原装正品，请您放心购买！ 订购电话：021-36539288 ,021-36539299
IKONA4926UU/NA4926U/LRTZ13015051轴承参数
-
系列滚针轴承9
-
型号NA4926UU/NA4926U/LRTZ13015051
-
Boundary dimensions mm
- d
- D
- B
- C
- r smin(1)
- Fw
- 130
- 180
- 51
- 50
- 1.5
- 150
-
Identification number
- With two seals
- With one seal
- With two seals
- With one seal
- NA 4926UU
- NA 4926U
- ─
- ─
-
Mass (Ref. )g4 080
-
Standard mounting dimensions
- da
- Da
- Min.
- Max.
- Max.
- 138
- 148
- 172
-
Basic dynamic load rating
- C
- N
- 206 000
-
Basic static load rating
- C0
- N
- 511 000
-
Allowable rotational
- speed(2)
- rpm
- 1 300
-
Assembled inner ring
- LRTZ 13015051

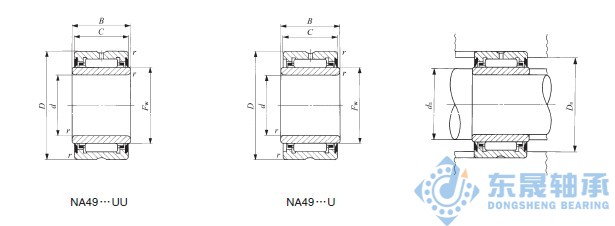

- 滚针轴承9系列 NA4926UU/NA4926U/LRTZ13015051图片
