IKONA4915UU/NA4915U/LRTZ758531轴承
- 轴承型号：NA4915UU/NA4915U/LRTZ758531
- 系列：滚针轴承9
- 品牌：IKO
IKO NA4915UU/NA4915U/LRTZ758531轴承,滚针轴承9，轴承内圈,外圈更多详细资料您可致电我司，此轴承型号本公司有现货，获取IKO NA4915UU/NA4915U/LRTZ758531代号,基本尺寸,安装尺寸,基本额定载荷,精度等级,装配,轴承的图纸、样品、价格或者替换产品等！我们是IKO轴承最佳代理商，所售产品均为原装正品，请您放心购买！ 订购电话：021-36539288 ,021-36539299
IKONA4915UU/NA4915U/LRTZ758531轴承参数
-
系列滚针轴承9
-
型号NA4915UU/NA4915U/LRTZ758531
-
Boundary dimensions mm
- d
- D
- B
- C
- r smin(1)
- Fw
- 75
- 105
- 31
- 30
- 1
- 85
-
Identification number
- With two seals
- With one seal
- With two seals
- With one seal
- NA 4915UU
- NA 4915U
- ─
- ─
-
Mass (Ref. )g815
-
Standard mounting dimensions
- da
- Da
- Min.
- Max.
- Max.
- 80
- 83
- 100
-
Basic dynamic load rating
- C
- N
- 79 600
-
Basic static load rating
- C0
- N
- 153 000
-
Allowable rotational
- speed(2)
- rpm
- 2 000
-
Assembled inner ring
- LRTZ 758531

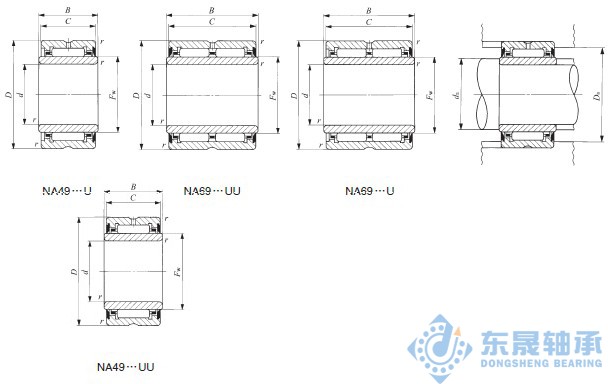

- 滚针轴承9系列 NA4915UU/NA4915U/LRTZ758531图片
