IKOGBRI568032UU/GBRI568032U/LRBZ566432轴承
- 轴承型号：GBRI568032UU/GBRI568032U/LRBZ566432
- 系列：滚针轴承13
- 品牌：IKO
IKO GBRI568032UU/GBRI568032U/LRBZ566432轴承,滚针轴承13，轴承内圈,外圈更多详细资料您可致电我司，此轴承型号本公司有现货，获取IKO GBRI568032UU/GBRI568032U/LRBZ566432配合安装尺寸,基本尺寸,滚子粒数,GBRI568032UU/GBRI568032U/LRBZ566432价格,外形尺寸,锥度,轴承的图纸、样品、价格或者替换产品等！我们是IKO轴承最佳代理商，所售产品均为原装正品，请您放心购买！ 订购电话：021-36539288 ,021-36539299
IKOGBRI568032UU/GBRI568032U/LRBZ566432轴承参数
-
系列滚针轴承13
-
型号GBRI568032UU/GBRI568032U/LRBZ566432
-
Boundary dimensions mm
- d
- D
- B
- C
- Fw
- 88.900（3.5)
- 127.000（5)
- 51.050
- 50.800（2)
- 101.600(4)
-
Identification number
- With two seals
- With one seal
- GBRI 568032 UU
- GBRI 568032 U
-
Mass (Ref. )g2 130
-
Standard mounting dimensions
- da
- Da
- (1)
- Min.
- Max.
- Max.
- r as max(1)
- 97
- 99
- 119
- 1.5
-
Basic dynamic load rating
- C
- N
- 182 000
-
Basic static load rating
- C0
- N
- 395 000
-
Allowable rotational
- speed(2)
- rpm
- 800
-
Assembled inner ring
- LRBZ 566432

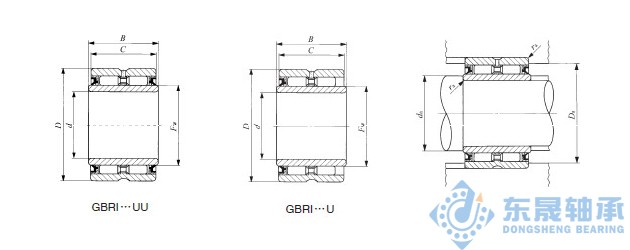

- 滚针轴承13系列 GBRI568032UU/GBRI568032U/LRBZ566432图片
